Description:
Open Frame 17/19 Inch 5:4 USB RS232 Capacitive Touchscreen TFT LCD Touch Screen Monitor Display
Specification:
| Type | Open frame capacitive touch screen monitor |
| LCD Type | TFT-LCD |
| Diagonal Dimension | 17"(diagonal) |
| Outer Frame color | Black |

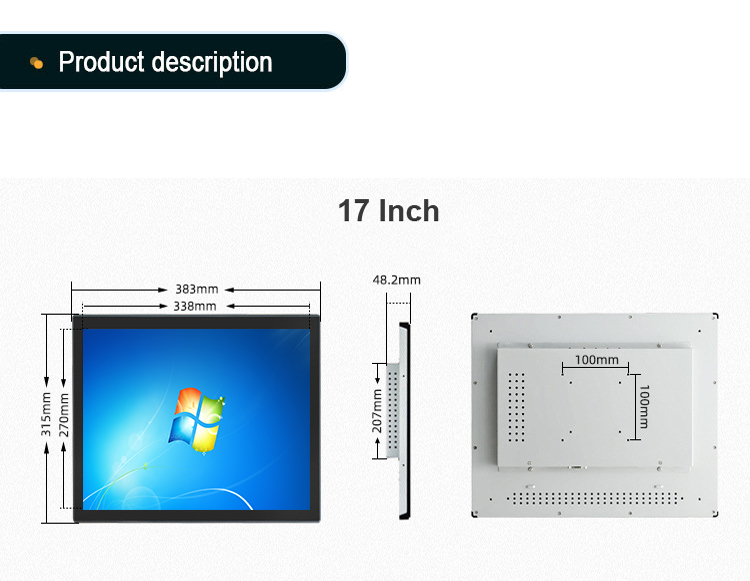

| Active Area | 338mm*270mm |
| Display Resolution | 1280*1024 |
| Supported Colors | 16.7M |
| Brightness (typical) | 250cd/m2 ( High Brightness for option) |
| Response Time (typical) | 5ms |
| Perspective | Horizontal (Left / Right):89°/89° |
| (Typ.at CR>10) | Vertical (Up / Down):89°/89° |
| Contrast Ratio (typical) | 3000:1 |
| | HD-MI | 1*HD-MI |
| VGA | 1*VGA |
| DVI | 1*DVI (for option) |
| DC | 1*DC input |
| MIC | YES |
| Headset | 3.5mm stereo headphone output |
| Input voltage | 100-240 V AC, 50-60 Hz |
| MTBF | 50,000 hours |
| OSD control | POWER,AUTO,RIGHT,LEFT,MENU |
| Touch Screen Type | 17'' flat capacitive touch screen |
| Touch Interface | USB |
| Warranty | 1 Year |
Application
| Telecommunication Devices | Telephone, Interphone, watch, radio, etc. |
| Home Appliances | Washing Machine, Refrigerator, Home Integrator |
| Industrial Control | Homotaxial Numerically-controlled machine tool |
| Instrument and Apparatus | Tester, Medical instruments |
| Vehical-mounted Digital | MP3, MP4 and vehical-mounted air conditioner |
| Mining | Mine's lamp charger, gas tester |
| Marine | Salinity tester |
The terms of Shipping:
We will ship the items within 5 working days after the payment confirmed.
We can ship to you by DHL/FedEx/UPS/TNT/EMS. Please contact us directly and we will use your preferred ways.For the Countries & Regions where EMS cannot deliver,please choose other shipping ways.
We are not responsible for any accidents,delays or other issues caused by the forwarder.
Our Services:
Sales Team: We have a very professional sales team.Our sourcing solutions will help you quickly find and buy the first-hand products that you need at the earliest moment.
Rapid response to your needs: Respond will be within 12 hours.Please feel free to contact us.
Comprehensive data management system for immediate responses to all inquiry and quotation.
FAQ:
1. Q: Do you accept OEM service?
A: Yes,We can do OEM&ODM service and can customize products according to the drawings you supply.
2. Q: What about the delivery time?
A: Generally, the sample order is 7 to 15 days. While for OEM order or that with special requirement on configuration, then the leading time is 15-20 working days after all order details confirmed.
3. Q: How could I get samples?
A: Free sample is not available. If you need to order sample for checking-up, then both the sample and shipping cost should be charged by you, we will deliver them to you after receiving your payment.
4. Q: What's your payment term?
A: We always accept T/T and West Union payment with FOB, CIF or EXW price.
5. Q: What kind of delivery method you always choose?
A: DHL/FedEx/UPS/EMS is accepted, and it is better if you have your own freight agency.For mass order, we will choose ship by sea.
6. Q: What's the after-sales service you can supply?
A: Be free of 1 year warranty and lifetime maintenance service Any problems about the product we will give you professional response within 24 hours.
7. Q: What's the MOQ of your products?
A: We have no limit for MOQ, so you can even buy only 1 piece
