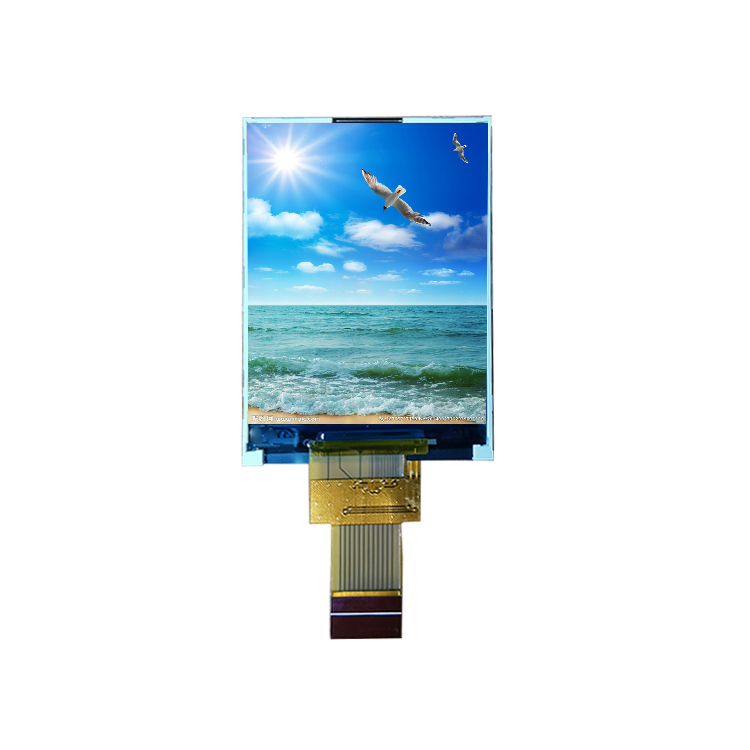

GC9306 Small Lcd Panel 2.4 Inch 240x320 With SPI Interface

Product Categories
shenzhen hainengzhichuang Technology Co.,LTD
Contact Now

GC9306 Small Lcd Panel 2.4 Inch 240x320 With SPI Interface

Brand Name : hainengzhichuang

Model Number : custom

Place of Origin : Shenzhen, China

MOQ : custom

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

LCD size : 2.4 inch

Driver element : a-Si TFT active matrix

Resolution : 240(RGB) × 320

Active area : 36.72W)*48.96(H) mm

LCM dimension : 42.72(W)*60.26(H)*2.07±0.2(FPC NOT INCLUDE)

Surface treatment : Anti-Glare

Color arrangement : RGB-stripe

Interface : SPI

Contact Now

Description:

2.4 inch lcd module 240*320 resolution lcd screen GC9306 Drivr IC lcd display in small MOQ

Specification:

LCD size 2.4inch
Driver element a-Si TFT active matrix
Resolution 240(RGB) × 320
Display mode Transmissive a-tft
pixel size 0.153(W)*0.153(H)
Active area 36.72W)*48.96(H) mm
LCM dimension 42.72(W)*60.26(H)*2.07±0.2(FPC NOT INCLUDE)
Surface treatment Anti-Glare
Color arrangement RGB-stripe
Interface SPI
View direction(Gray Inversion) Free
IC GC9306

Application

Telecommunication Devices

Telephone, Interphone, watch, radio, etc.

Home Appliances

Washing Machine, Refrigerator, Home Integrator

Industrial Control

Homotaxial Numerically-controlled machine tool

Instrument and Apparatus

Tester, Medical instruments

Vehical-mounted Digital

MP3, MP4 and vehical-mounted air conditioner

Mining

Mine's lamp charger, gas tester

Marine

Salinity tester

Packaging & Shipping

1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.

2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

GC9306 Small Lcd Panel 2.4 Inch 240x320 With SPI Interface

FAQ

Q: Can you customize the product? what do you need?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: We have passed ISO9001, SGS, TUV, BV, RoHS and other certifications, and can export.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1weeks,Mass production for 2 weeks.
Q: Are you a merchant or a factory?
A: We are manufacturers, have production trademark and production workers.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.

Product Tags:

GC9306 Small Lcd Panel



240x320 Small Lcd Panel



SPI 2.4 inch lcd panel
